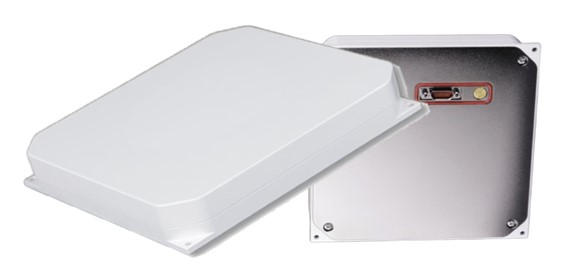

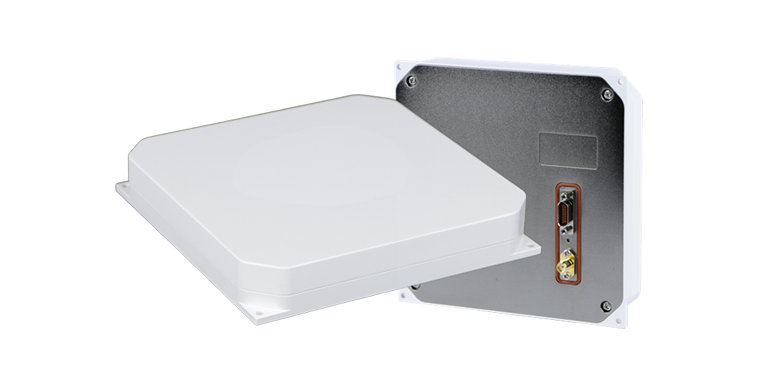

FDE5004
Satellite navigation systems are currently being used as useful systems that provide location and time information to civilians and military, but they have the characteristic of being vulnerable to jamming attacks due to the low sensitivity of long-distance satellite signals. The FDE5004 series is an anti-jamming receiver that uses adaptive nulling antenna technology with a four-antenna array structure that covers the GPS L1, GLONASS L1 and Galileo E1 bands. It is particularly suitable for military applications as it can be applied to environments vulnerable to jamming. After receiving a satellite signal, it will remove various types of wideband and narrowband interference signals such as harmonics, frequency sweeps, pulses, white noise, frequency modulation, amplitude modulation, and pulse modulation.
- Consists of four anti-jamming antenna array and receiver
- Adaptive nulling antenna receiving system
- Covers GPS L1, GLONASS L1 and Galileo E1
- High out-of-band rejection and high linearity
- Wide input voltage range with built-in voltage regulator circuit
| ELECTRICAL SPECIFICATIONS | FDE5004-XXX |
|---|---|
| Receiving frequency | 1559 ~ 1610MHz |
| Anti-jam frequency point | 1575 ~ 1601MHz |
| Anti-jam ability | single jam ≥ 100 dB, triple jam ≥ 85 dB |
| Gain | ≥ 3 dB (elevation angle 90°) |
| Signal output power | ≤ -55 dBm |
| Impedance | 50 Ω |
| Cold start | ≤ 40s |
| Positioning accuracy | ≤ 10m(1σ) |
| Speed survey accuracy | ≤ 0.2m/s horizontal / ≤ 0.3m/s elevation |
| Maximum speed | ≤ 1100m/s |
| Maximum acceleration | ≤ 15g |
| Jerk | ≤ 3g/s |
| Isolation | ≥ 15 dB |
| LNA Gain | 20.0±2 dB |
| VSWR | ≤ 2.0 |
| Noise figure | ≤ 2.0dB |
| Output3rd order intercept point | ≥ 22dBm |
| Out band rejection | ≥ 45dBc @ fc±100MHz |
| Input voltage | 18 ~ 36V |
| Power consumption | ≤ 15W |
| Weight | < 500 g |
| Environmental adaptability | Operating temperature: -40°C ~ 60°C |
| Storage temperature: -55°C ~ 65°C |
| No. | Name | Description |
|---|---|---|
| 1 | VCC IN | 18 ~ 36 VDC |
| 2 | VCC IN | 18 ~ 36 VDC |
| 3 | GND | GND |
| 4 | GND | GND |
| 5 | 422Rx+ | signal reception + |
| 6 | 422Rx- | signal reception - |
| 7 | 422Tx+ | signal transmission + |
| 8 | 422Tx- | signal transmission - |
| 9 | TTL | +5 VDC |
| Description | |
|---|---|
| RF connector | SMA-K |
| Data connector | J30J-15ZK |
| Dimension | 132 x 132 x 22 mm |
| Weight | < 500 g |
| Operating temperature | -40°C ~ 60°C |
| Storage temperature | -55°C ~ 65°C |
- Note
- The maximum ratings are stress only, and functional operation at the maximum is not guaranteed. Stress beyond the limits specified in the table may affect device reliability or cause permanent damage the device.

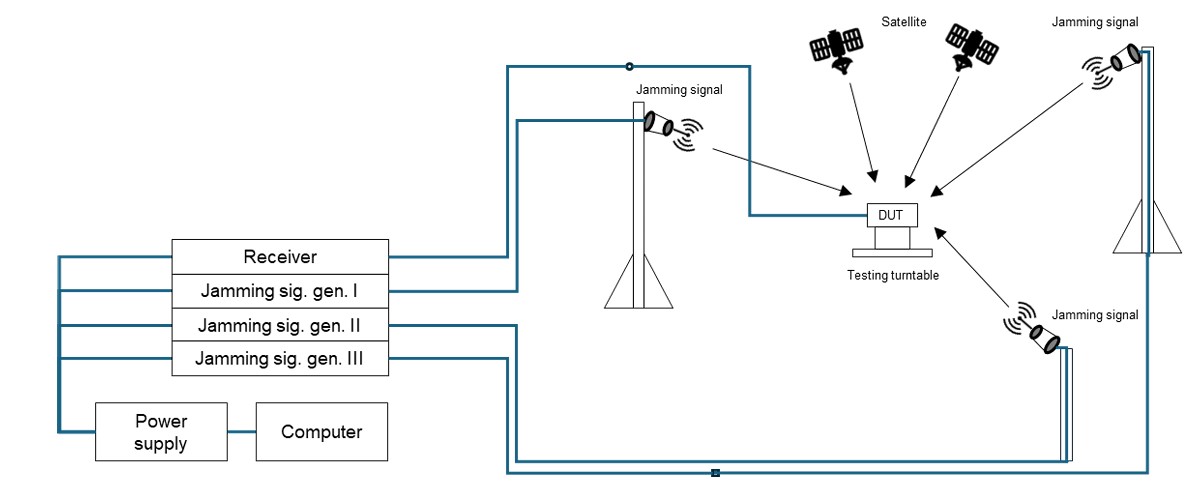

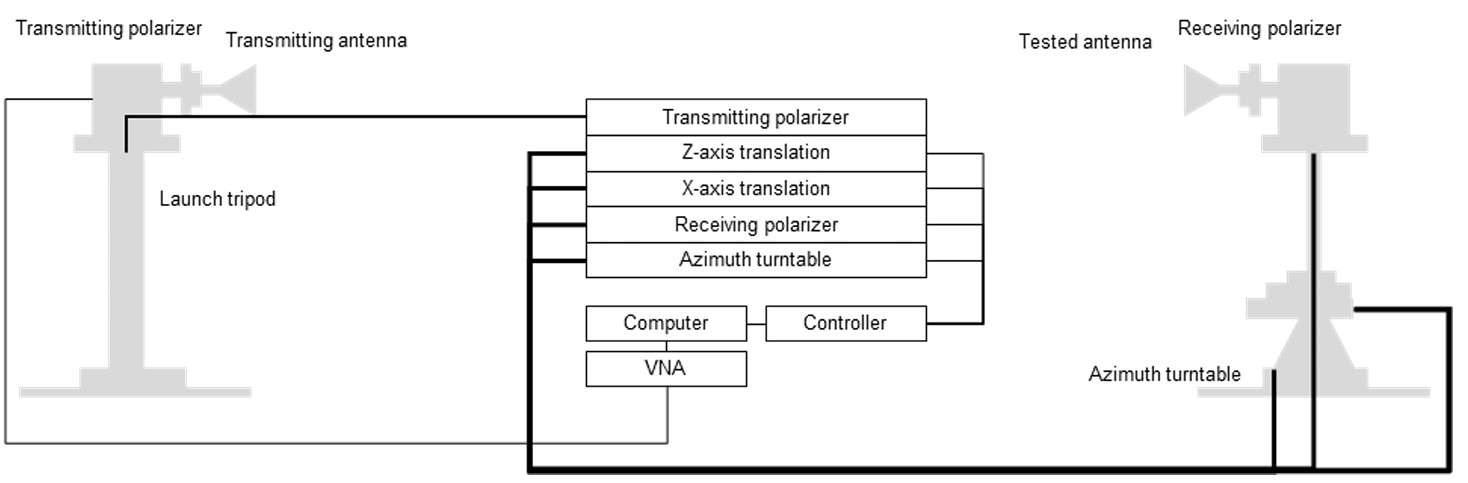

< image 1> TEST SYSTEM BLOCK DIAGRAM

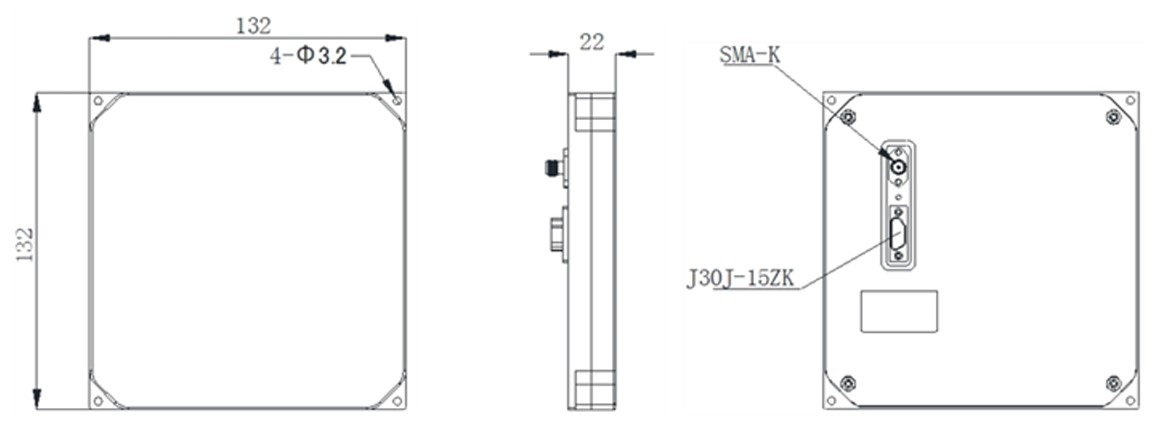

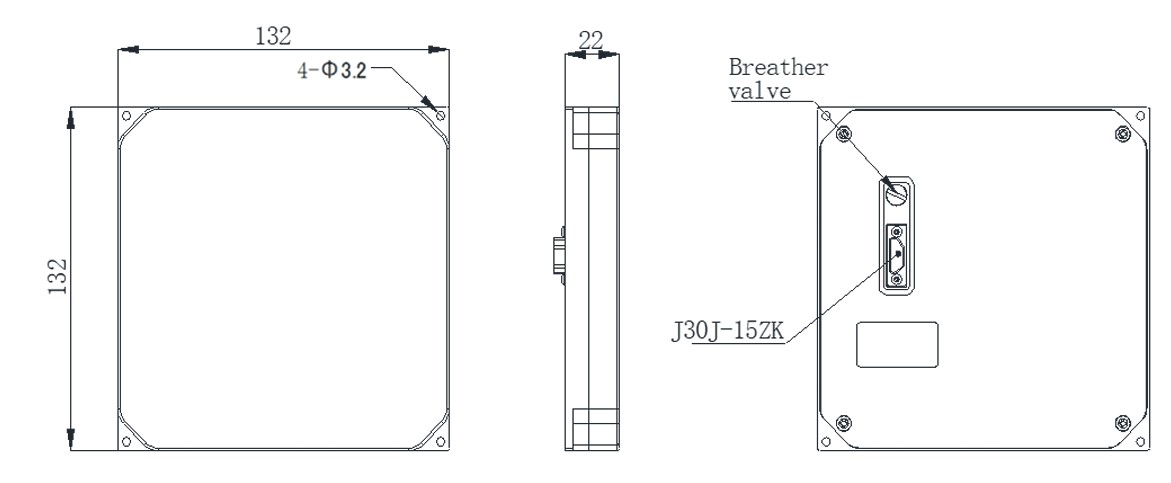

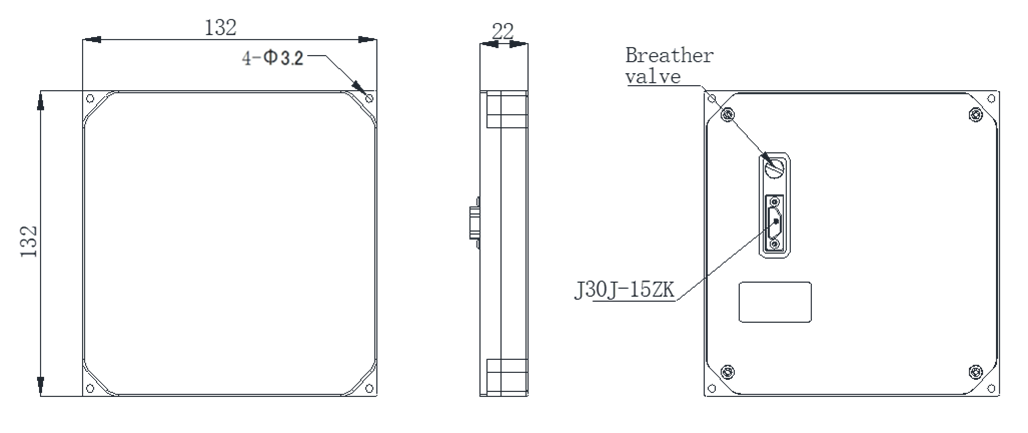

< image 2> DRAWING DIMENSIONS
WARRANTY
The period of warranty shall start from the date of purchase of the product and shall cover a period one (1) year. If the date of purchase of the product is unknown, the period of warranty shall start from the month of manufacturing of the product.

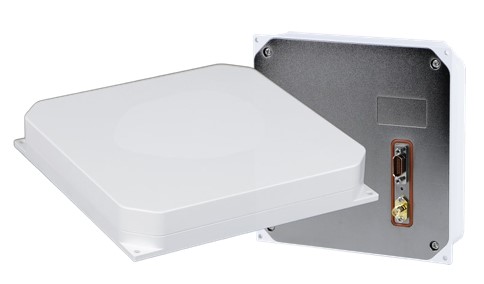

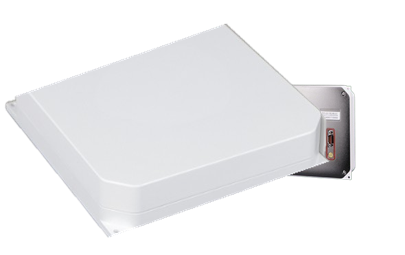

FDA5004
Satellite navigation systems are currently being used as useful systems that provide location and time information to civilians and military, but they have the characteristic of being vulnerable to jamming attacks due to the low sensitivity of long-distance satellite signals. The FDA5004 series is an anti-jamming antenna with a four-antenna array structure that covers the GPS L1, GLONASS L1, and Galileo E1 bands. It is particularly suitable for military applications as it can be applied to environments vulnerable to jamming. After receiving a satellite signal, it will remove various types of wideband and narrowband interference signals such as harmonics, frequency sweeps, pulses, white noise, frequency modulation, amplitude modulation, and pulse modulation.
- Consists of four anti-jamming antenna array
- Covers GPS L1, GLONASS L1 and Galileo E1
- High out-of-band rejection and high linearity
- Wide input voltage range with built-in voltage regulator circuit
| ELECTRICAL SPECIFICATIONS | FDA5004-XXX |
|---|---|
| Receiving frequency | 1559 ~ 1610MHz |
| Anti-jam frequency point | 1575 ~ 1601MHz |
| Anti-jam ability | single jam ≥ 100 dB, triple jam ≥ 85 dB |
| Gain | ≥ 3 dB (elevation angle 90°) |
| Signal output power | ≤ -55 dBm |
| Impedance | 50 Ω |
| Isolation | ≥ 15 dB |
| LNA Gain | 20.0±2 dB |
| VSWR | ≤ 2.0 |
| Noise figure | ≤ 2.0dB |
| Output3rd order intercept point | ≥ 22dBm |
| Out band rejection | ≥ 45dBc @ fc±100MHz |
| Input voltage | 18 ~ 36V |
| Power consumption | ≤ 15W |
| Weight | < 500 g |
| Environmental adaptability | Operating temperature: -40°C ~ 60°C |
| Storage temperature: -55°C ~ 65°C |
| No. | Name | Description |
|---|---|---|
| 1 | VCC IN note1 | 18 ~ 36 VDC |
| 2 | VCC IN | 18 ~ 36 VDC |
| 3 | GND | GND |
| 4 | GND | GND |
| 5 | 422Rx+ | signal reception + |
| 6 | 422Rx- | signal reception - |
| 7 | 422Tx+ | signal transmission + |
| 8 | 422Tx- | signal transmission - |
| 9 | TTL | +5 VDC |
| Description | |
|---|---|
| RF connector | SMA-K |
| Data connector | J30J-15ZK |
| Dimension | 132 x 132 x 22 mm |
| Weight | < 500 g |
| Operating temperature | -40°C ~ 60°C |
| Storage temperature | -55°C ~ 65°C |
- Note
- The maximum ratings are stress only, and functional operation at the maximum is not guaranteed. Stress beyond the limits specified in the table may affect device reliability or cause permanent damage the device.

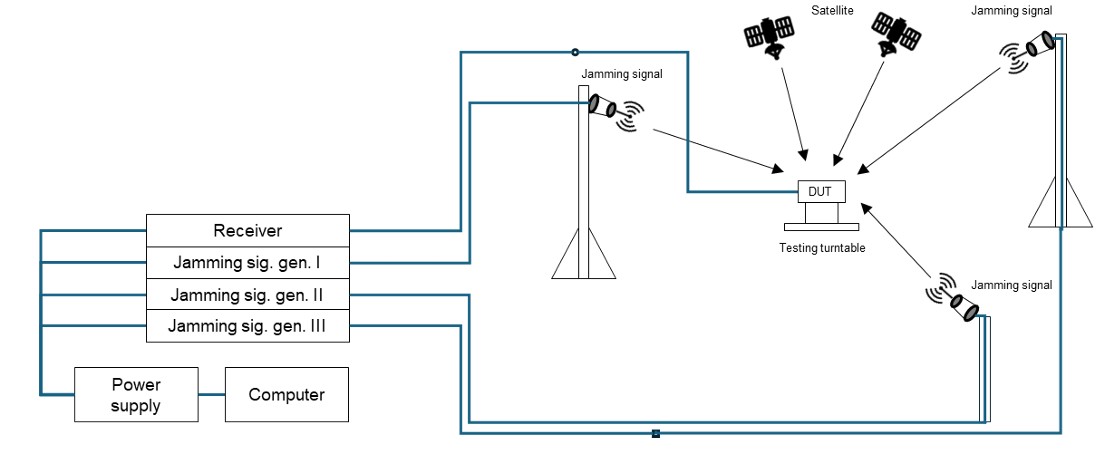

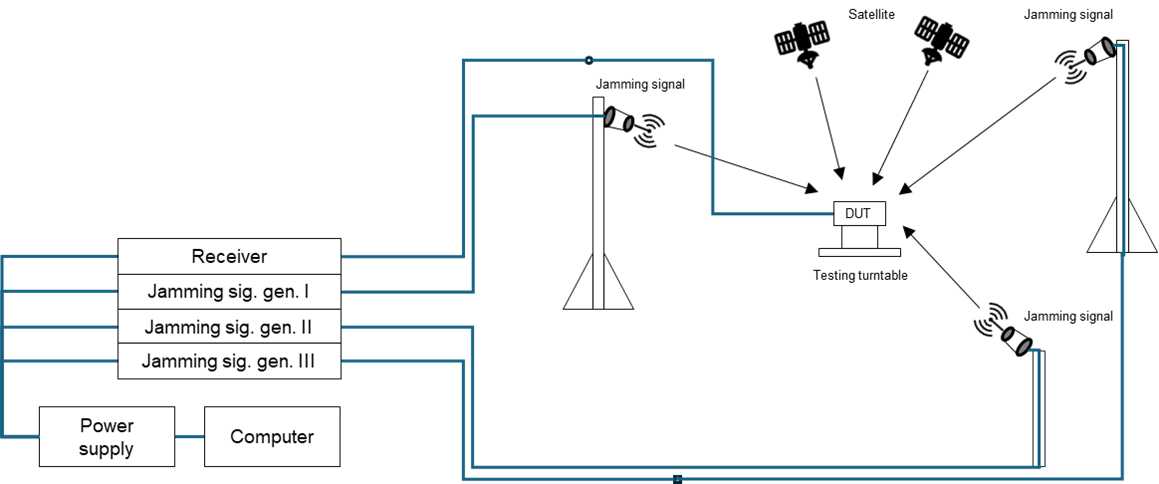

MULTI JAMMING TEST BLOCK DIAGRAM

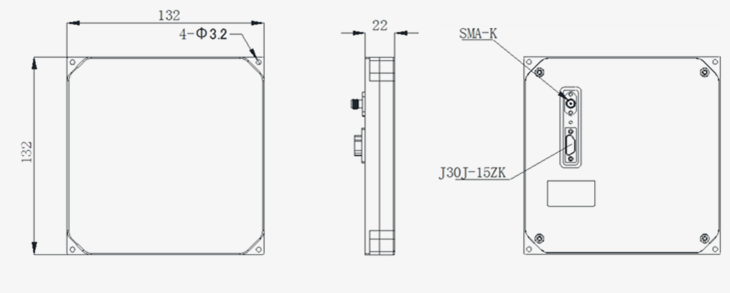

< image 2> DRAWING & DIMENSIONS
WARRANTY
The period of warranty shall start from the date of purchase of the product and shall cover a period one (1) year. If the date of purchase of the product is unknown, the period of warranty shall start from the month of manufacturing of the product.

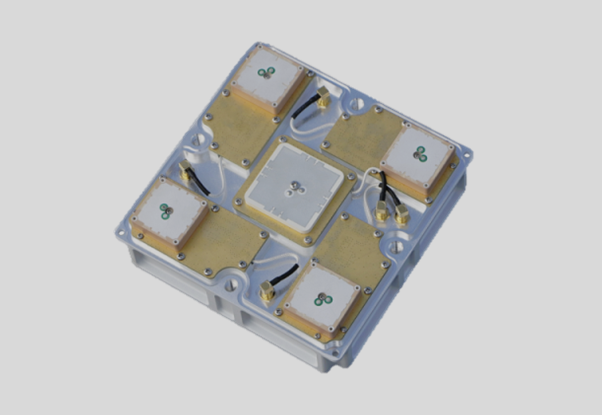

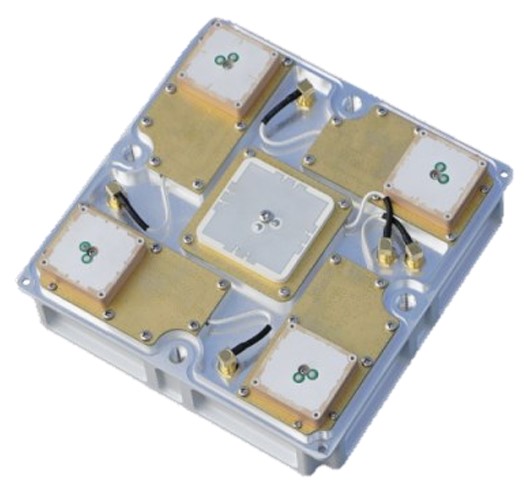

FDA5005
Satellite navigation systems are currently being used as useful systems that provide location and time information to civilians and the military, but they have the characteristic of being vulnerable to jamming attacks due to the low sensitivity of long-distance satellite signals. The FDA5005 series is a five elements anti-jamming antenna that covers the GPS L1/L2 bands. It is particularly suitable for military applications as it can be applied to environments vulnerable to jamming. The FDA5005 series consist of four ant-jam elements and a GNSS element to provide navigation and positioning service in strong jamming environments.
- Consists of five antenna array
- Covers GPS L1, GPS L2
- Anti-jamming frequency: GPS L2
| ELECTRICAL SPECIFICATIONS | GPS L2 | GPS L1 |
|---|---|---|
| Frequency range | 1227.6±10MHz | 1575.42±1.023MHz |
| Gain | ≥ 1.5dBi | ≥ 4.0dB |
| Polarization | RHCP | RHCP |
| Circular polarization axial ratio | ≤ 3dB (elevation angle 90°) | ≤ 3dB (elevation angle 90°) |
| LNA gain | 20±1dB | 21±2dB |
| VSWR, input | ≤ 1.8 | ≤ 1.8 |
| VSWR, output | ≤ 2.0 | ≤ 2.0 |
| Noise figure | ≤ 1.8dB | ≤ 1.8dB |
| In-band flatness | ≤ 1.5dB | ≤ 1.5dB |
| Amplitude consistency | ±0.5dB | |
| Out of band rejection | ≥ 55dBc @ fc±40MHz | ≥ 40dBc @ fc±50MHz |
| Output3rd order intercept point | ≥ 33.5dBm | ≥ 33.5dBm |
| Phase consistency | ±5° | ±5° |
| Isolation | ≥ 15dB | n/a |
| Supply voltage | 5± 0.5VDC | |
| Current consumtion | ≤ 100mA | |
| Operating temperature | -40°C ~ +55°C | |
| Storage temperature | -50°C ~ +65°C | |
| Description | |
|---|---|
| Connector | SMA/J30JA-15ZK |
| Dimension | 140 x 140 x 50mm |
| Weight | 132 x 132 x 22 mm |
| Weight | < 800g |
| Operating temperature | -40°C ~ 55°C |
| Storage temperature | -50°C ~ +65°C |
- Note
- The maximum ratings are stress only, and functional operation at the maximum is not guaranteed. Stress beyond the limits specified in the table may affect device reliability or cause permanent damage the device.

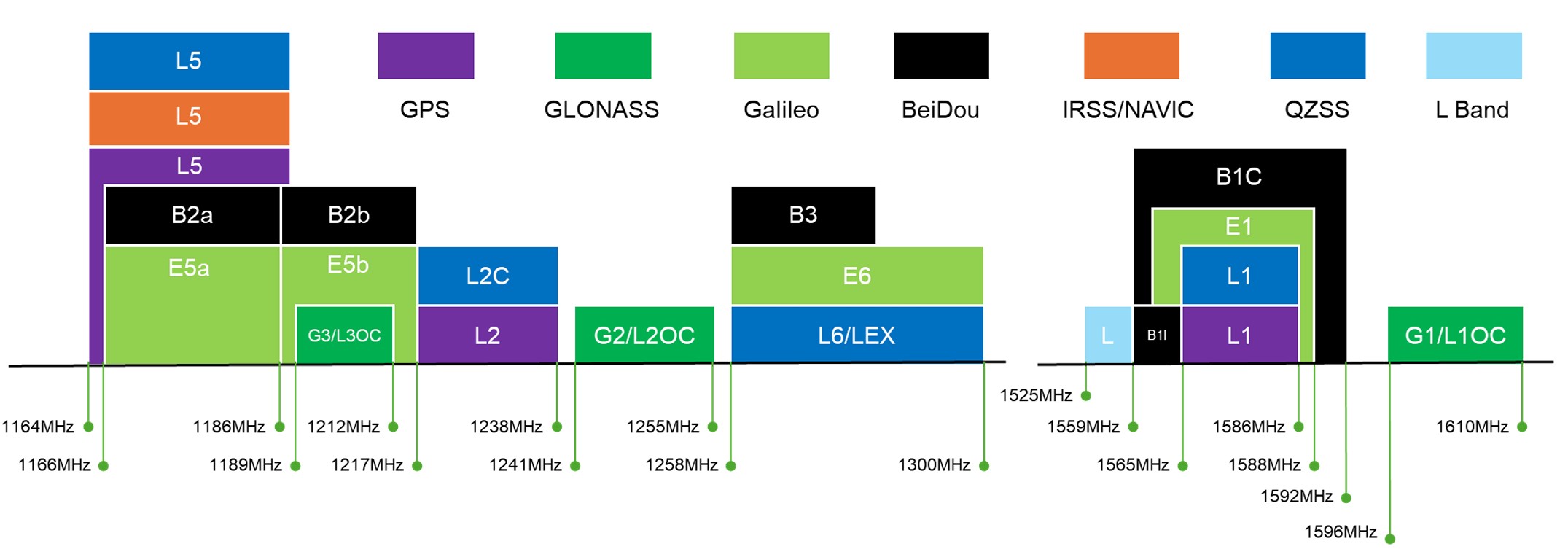

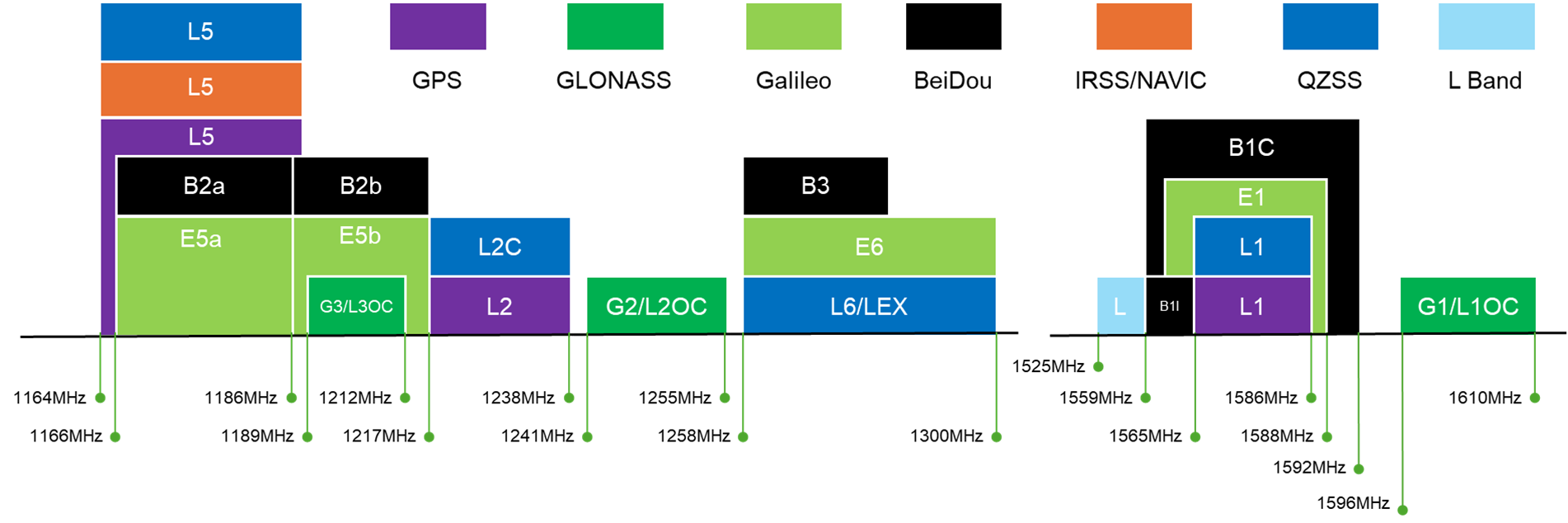

<1> GNSS BANDS

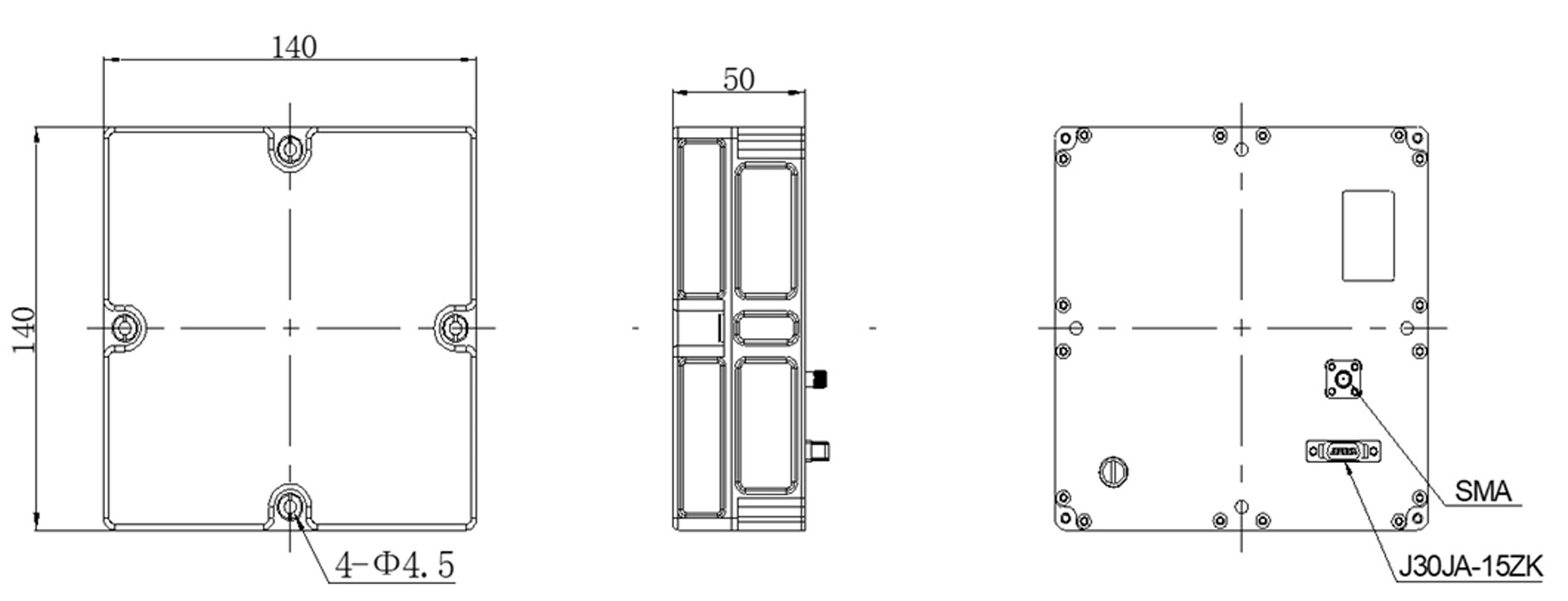

< image 2> DRAWING & DIMENSIONS
WARRANTY
The period of warranty shall start from the date of purchase of the product and shall cover a period one (1) year. If the date of purchase of the product is unknown, the period of warranty shall start from the month of manufacturing of the product.

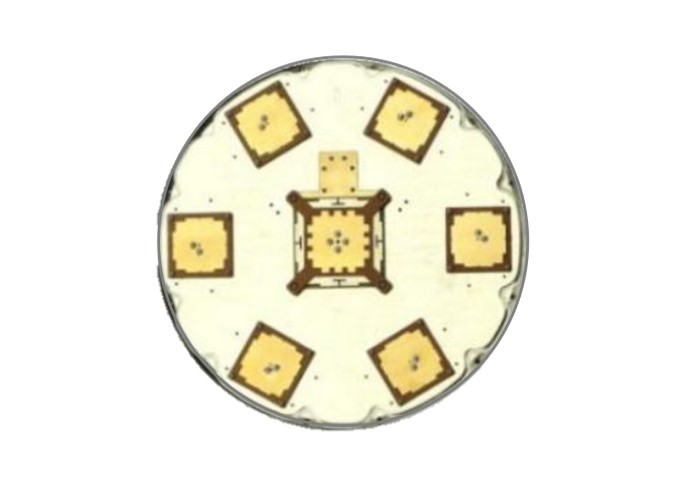

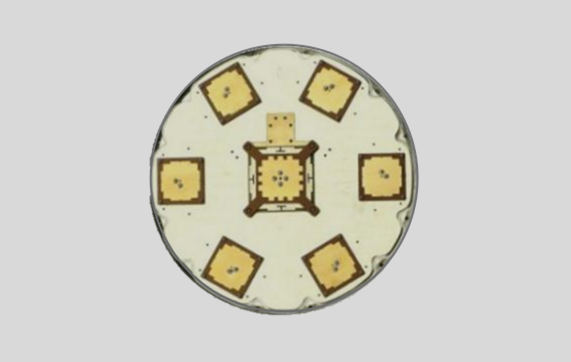

FDA5007
Satellite navigation systems are currently being used as useful systems that provide location and time information to civilians and the military, but they have the characteristic of being vulnerable to jamming attacks due to the low sensitivity of long-distance satellite signals. The FDA5007 series is a high precision seven elements anti-jamming antenna that covers the GPS L1/L2 and GLONASS L1/L2 bands. It is particularly suitable for military applications as it can be applied to environments vulnerable to jamming. The FDA5007 series consist of seven ant-jam elements, a high-precision element and LNA to provide high-precision positioning with anti- jamming
- Consists of six anti-jamming antenna array and high precision GNSS antenna
- Including LNA
- Covers GPS L1/L2 and GLONASS L1/L2
- High-precision GNSS antenna with anti-jamming array
- Four feed design for anti-jamming antenna
- Completely sealed to IP67 waterproof level
| ELECTRICAL SPECIFICATIONS | Anti-jam element | High-precision element |
|---|---|---|
| Frequency range | 1227.6±10MHz | 1559~1606MHz, 1217~1255MHz |
| Gain | GLONASS L2: ≥ 4.0dB (90°) | |
| ≥ 3 dB (elevation angle 90°) | GPS L2: ≥ 3.0 dB (90°) | |
| ≥ -5 dB (elevation angle 20°) | GPS L1: ≥ 4.0 dB (90°) / -3.0 dB (20°) | |
| GLONASS L1: ≥ 4.0 dB (90°) / -3.0 dB (20°) | ||
| Polarization | RHCP | RHCP |
| Circular polarization axial ratio | ≤ 3dB (elevation angle 90°) | ≤ 6dB (elevation angle 20°) |
| VSWR | ≤ 1.5 | ≤ 1.5 |
| LNA gain | 21±1dB | 21±1dB |
| VSWR | ≤ 1.8 | ≤ 1.8 |
| Noise figure | < 2.0dB | < 1.8dB |
| Output3rd order intercept point | ≥ 25dBm | n/a |
| Out of band rejection | ≥ 15@1227.6±45MHz, ≥ 50@1227.6±90MHz | ≥ 15@1268.52±45MHz, ≥ 50@1268.52±90MHz |
| Anti burn power | ≥ 30dBm | ≥ 30dBm |
| Supply voltage | 3.3±0.1V | |
| Current consumtion | <60mA | |
| Operating temperature | -40°C ~ +70°C | |
| Storage temperature | 45°C ~ +85°C | |
| Description | |
|---|---|
| Connector | TNC-K/J14F-15ZK |
| Dimension | Φ290 x 40 mm |
| Weight | < 3.5kg |
| Operating temperature | -40°C ~ +70°C |
| Storage temperature | -45°C ~ +85°C |
- Note
- The maximum ratings are stress only, and functional operation at the maximum is not guaranteed. Stress beyond the limits specified in the table may affect device reliability or cause permanent damage the device.

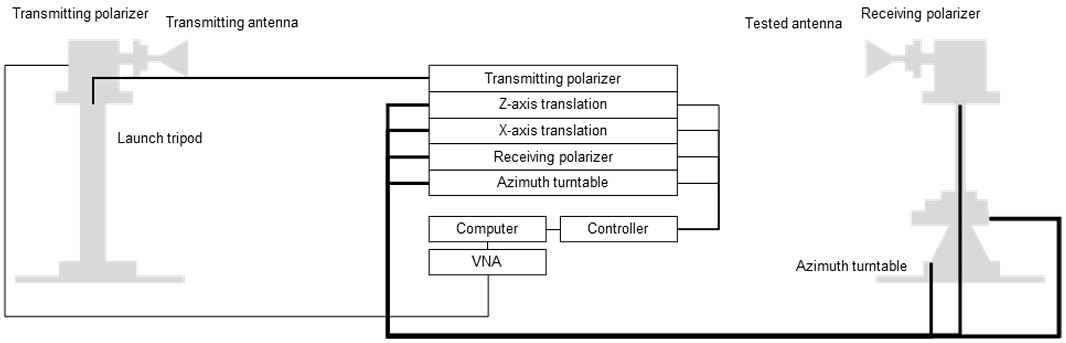

< image 1> TEST SYSTEM BLOCK DIAGRAM

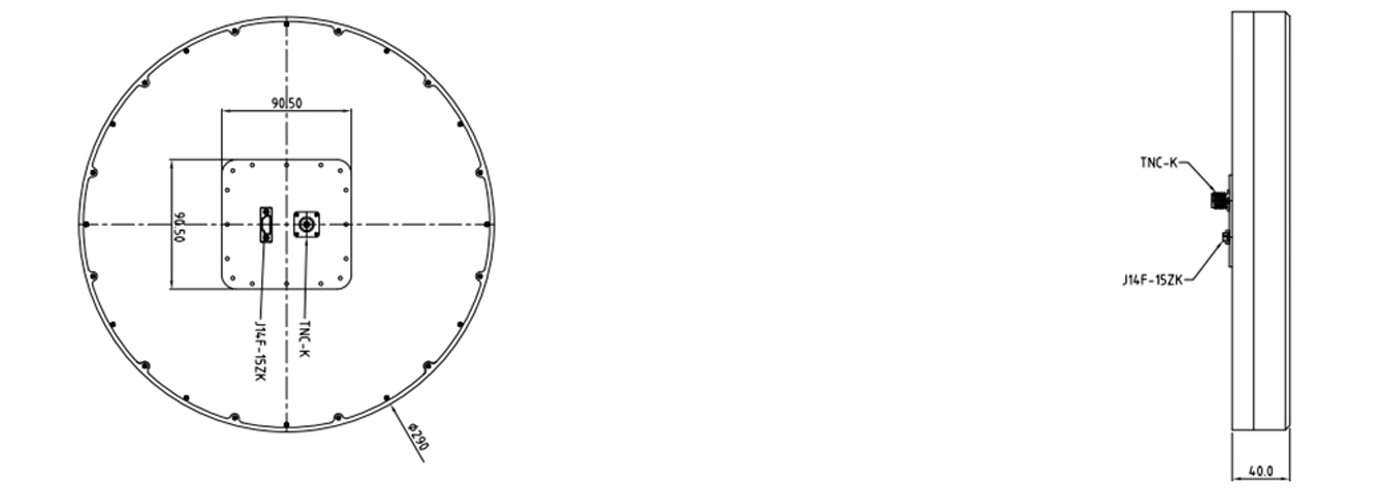

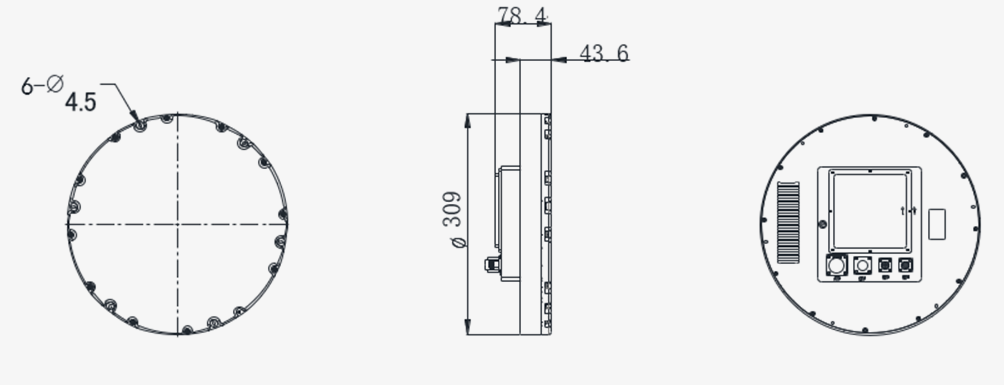

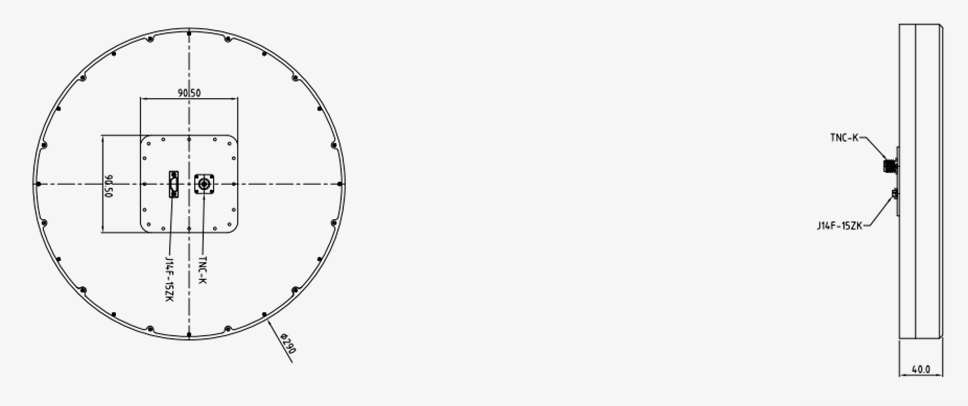

< image 2> DRAWING & DIMENSIONS
WARRANTY
The period of warranty shall start from the date of purchase of the product and shall cover a period one (1) year. If the date of purchase of the product is unknown, the period of warranty shall start from the month of manufacturing of the product.

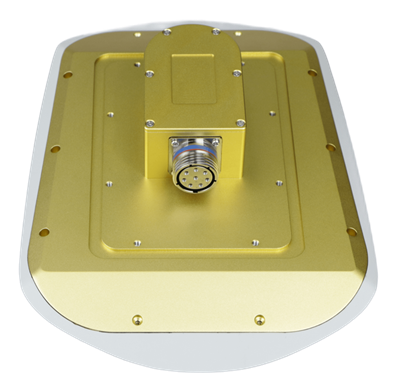

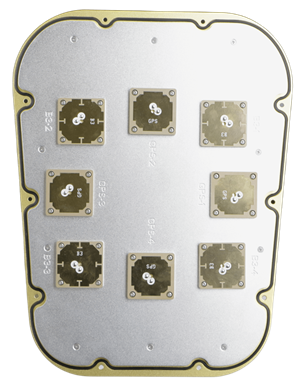

FDA5008
Satellite navigation systems are currently being used as useful systems that provide location and time information to civilians and the military, but they have the characteristic of being vulnerable to jamming attacks due to the low sensitivity of long-distance satellite signals. The FDA5008 series is an eight elements anti-jamming antenna that covers the GPS L1, GPS L2, and GLONASS L1 bands. It is particularly suitable for military applications as it can be applied to environments vulnerable to jamming. The FDA5008 series consists of four ant-jam antennas for GPS L2, four anti-jam antennas for GPS L1/GLONASS L1 and LNA of each channel in the same band are completely matched to ensure that the gain and delay of the four channel signals are identical.

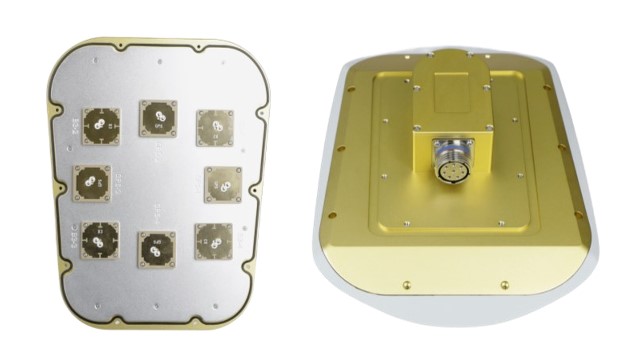

- Consists of eight anti-jamming antennas.
- Including LNA
- GNSS frequency band: GPS L1/L2, GLONASS L1
- Double feed symmetrical design for anti-jamming antenna
- High gain, wide beam pattern and good reception effect for low elevation angle signa
| ELECTRICAL SPECIFICATIONS | Anti-jam element GPS L2 | Anti0jam element GPS L1/GLONASS L1 |
|---|---|---|
| Frequency range | 1227.6±10.23MHz | 1601.5±8.5MHz |
| 1575.42±1.023MHz | ||
| Gain | ≥ 2.5 dB (elevation angle 90°) | ≥ 2.5dB (elevation angle 90°) |
| Polarization | RHCP | RHCP |
| VSWR | ≤ 2.0 | ≤ 2.0 |
| Circular polarization axial ratio | ≤ 3dB (elevation angle 90°) | ≤ 7dB (elevation angle 20°) |
| Pattern shape | Horizontal omnidirectional Vertical hemispherical beam | Horizontal omnidirectional Vertical hemispherical beam |
| Isolation | ≥ 15 dB | ≥ 18 dB |
| LNA Gain | 37.5±2dB | 37.5±2dB |
| VSWR | ≤ 2.0 | ≤ 2.0 |
| Noise figure | < 2.0dB | < 2.0dB |
| Anti burn power | ≥ 30dBm | ≥ 30dBm |
| Supply voltage | 4.5 ~ 12VDC | |
| Current consumtion | 30 ~ 50mA | |
| Operating temperature | -40°C ~ +70°C | |
| Storage temperature | 45°C ~ +85°C | |
| Description | |
|---|---|
| Connector | J599/20FF08BN |
| Dimension | Φ345 x 240 x 83mm |
| Weight | < 3kg |
| Operating temperature | -40°C ~ +70°C |
| Storage temperature | -45°C ~ +85°C |
- Note
- The maximum ratings are stress only, and functional operation at the maximum is not guaranteed. Stress beyond the limits specified in the table may affect device reliability or cause permanent damage the device.

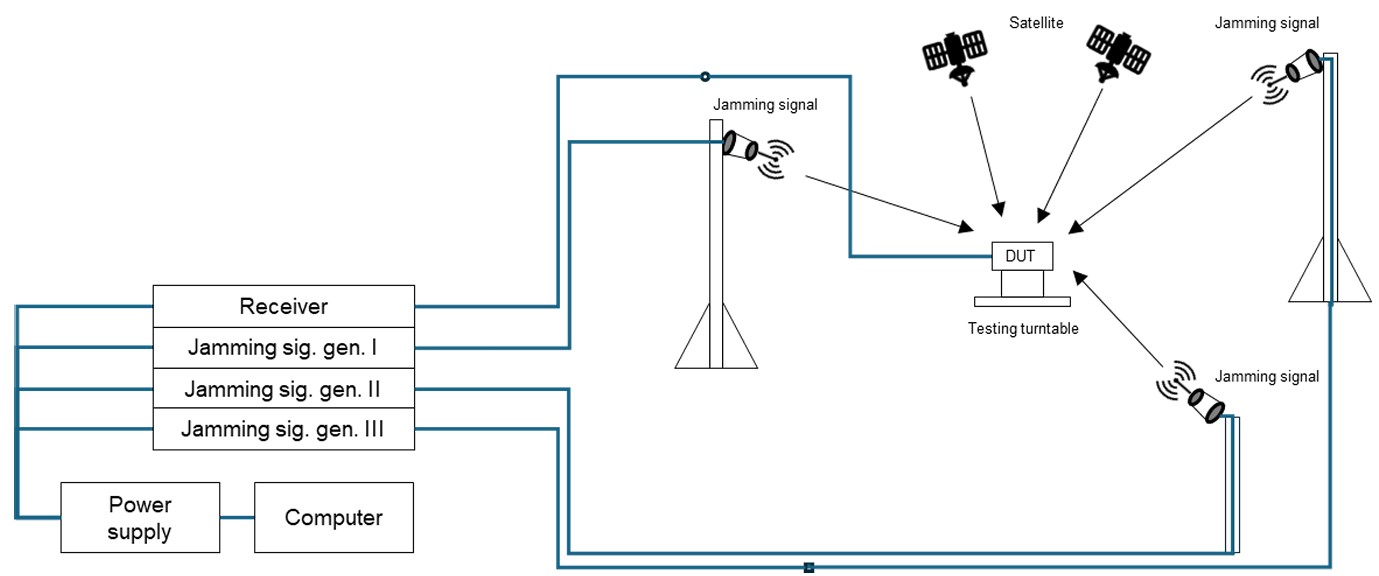

< image 1> TEST SYSTEM BLOCK DIAGRAM

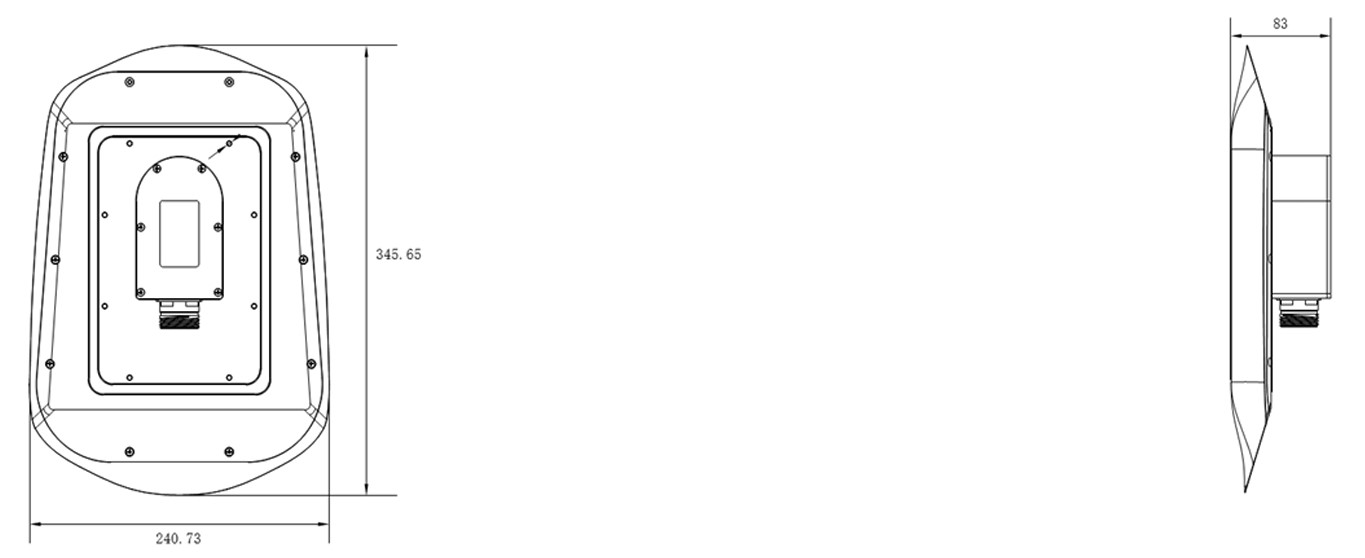

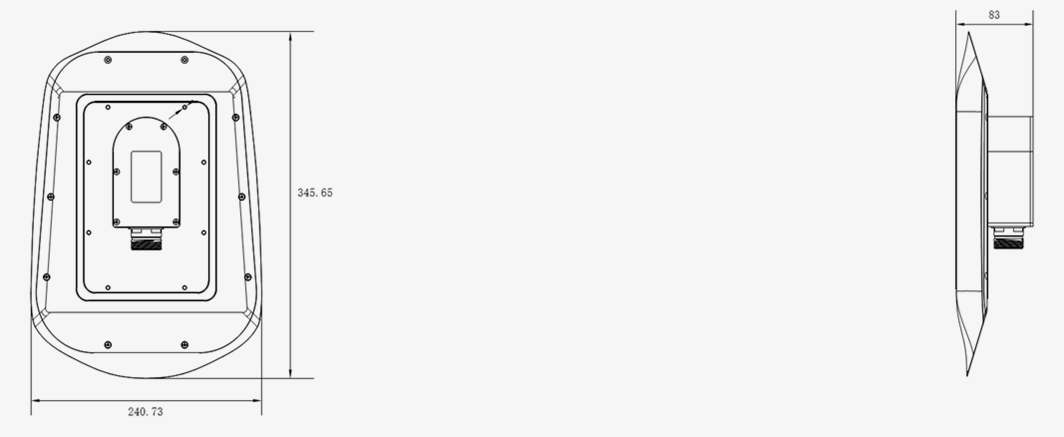

< image 2> DRAWING & DIMENSIONS
WARRANTY
The period of warranty shall start from the date of purchase of the product and shall cover a period one (1) year. If the date of purchase of the product is unknown, the period of warranty shall start from the month of manufacturing of the product.

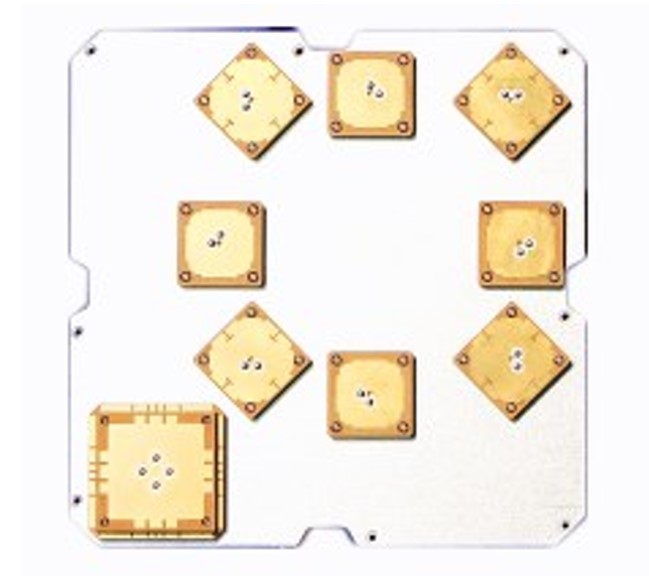

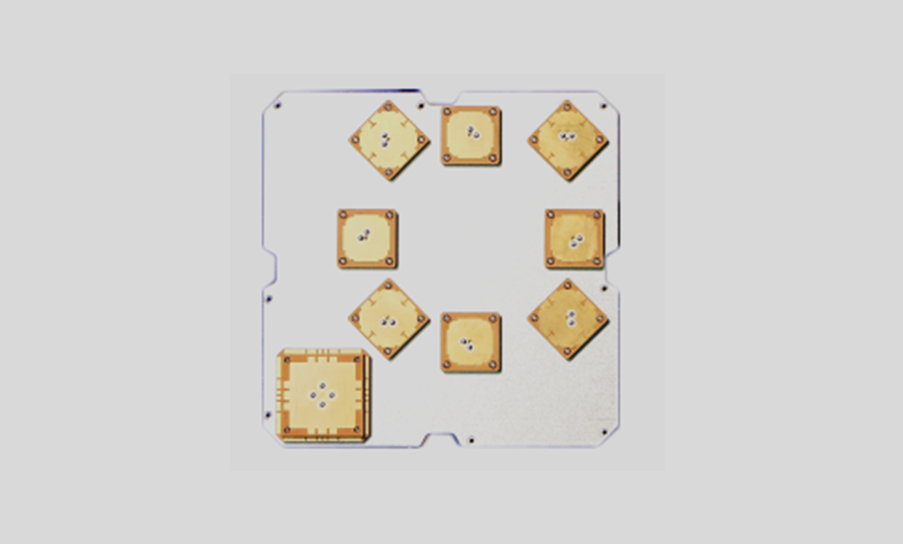

FDA5009
Satellite navigation systems are currently being used as useful systems that provide location and time information to civilians and the military, but they have the characteristic of being vulnerable to jamming attacks due to the low sensitivity of long-distance satellite signals. The FDA5009 series is a nine elements anti-jamming antenna that covers the GPS L1/L2, and GLONASS L1 bands. It is particularly suitable for military applications as it can be applied to environments vulnerable to jamming. The FDA5009 series consists of eight ant-jam antennas, one high precision GNSS antennas. The high precision antenna has four feed structure to improve accuracy and stability.
- Consists of eight anti-jamming antennas and one high precision GNSS antenna
- Including LNA with pre-filter and multi stage filter
- Frequency band: GPS L1/L2, GLONASS L1
- High-precision GNSS antenna with anti-jamming array
- Four feed design for high precision GNSS antenna
- Built-in lightning protection circuit
| ELECTRICAL SPECIFICATIONS | GPS L2 | GPS L1/GLONASS L1 | High precision GNSS |
|---|---|---|---|
| Frequency range | 1217~1237MHz | 1574~1577MHz | 1574~1577MHz |
| 1598~1608MHz | 1598~1608MHz | ||
| Gain | ≥ 3.0dBi (elevation angle 90°) | ≥ 3.0dBi (elevation angle 90°) | ≥ 3.0dBi (elevation angle 90°) |
| Polarization | RHCP | RHCP | RHCP |
| VSWR | < 2.0 | < 2.0 | < 2.0 |
| Circular polarization axial ratio | ≤ 3dB (elevation angle 90°) | ≤ 3dB (elevation angle 90°) | ≤ 3dB (elevation angle 90°) |
| Pattern shape | |||
| Isolation | |||
| LNA Gain | 30±2dB | 30±2dB | 35±2dB |
| VSWR | < 2.0 | < 2.0 | < 2.0 |
| Noise figure | ≤ 2.0dB | ≤ 2.0dB | ≤ 2.0dB |
| Output3rd order intercept point | |||
| Out band rejection | |||
| Input voltage | 4.5~12V | ||
| Current consumption | 50~90mA | ||
| Operating temperature | -40°C ~ +70°C | ||
| Storage temperature | -45°C ~ +85°C | ||
| Description | |
|---|---|
| Connector | 13-MCX-K |
| Dimension | 230 x 230 x 15mm |
| Weight | < 900g |
| Operating temperature | -40°C ~ +70°C |
| Storage temperature | -45°C ~ +85°C |
- Note
- The maximum ratings are stress only, and functional operation at the maximum is not guaranteed. Stress beyond the limits specified in the table may affect device reliability or cause permanent damage the device.

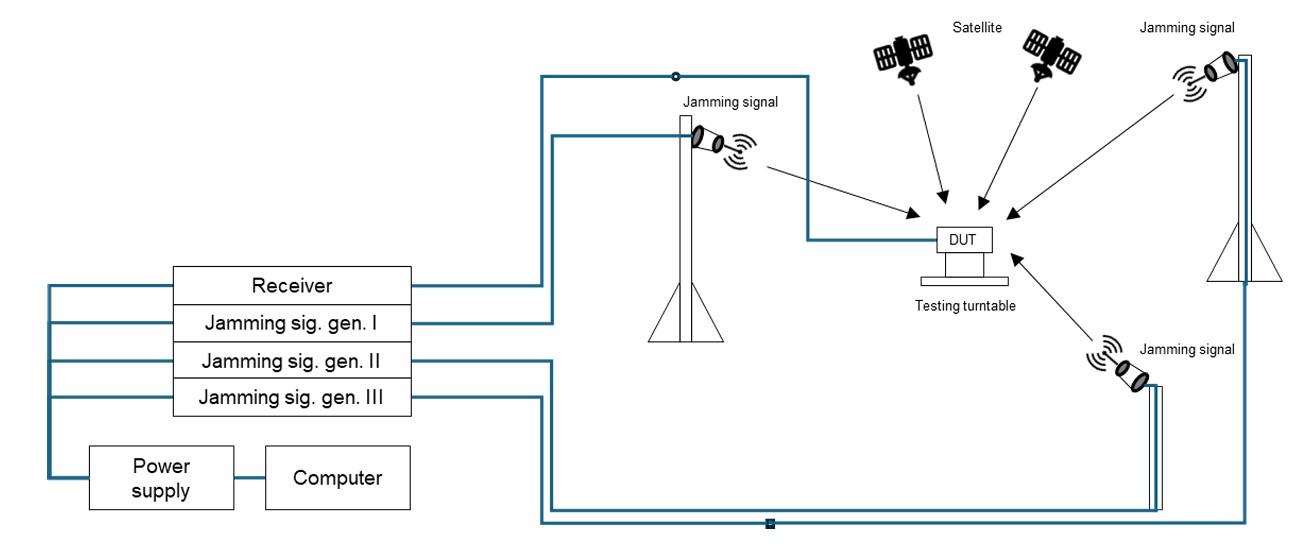

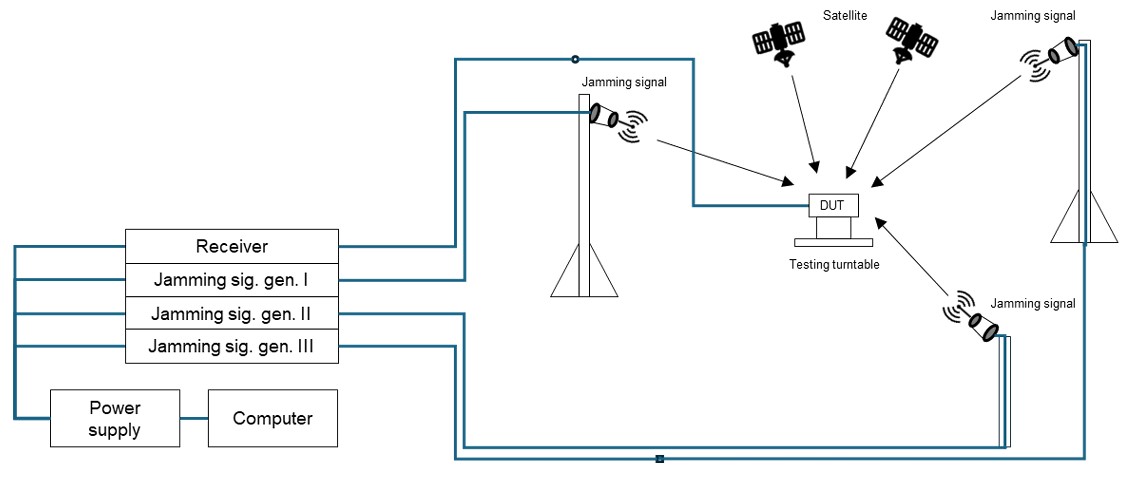

< image 1&bt; MULTI JAMMING TEST BLOCK DIAGRAM

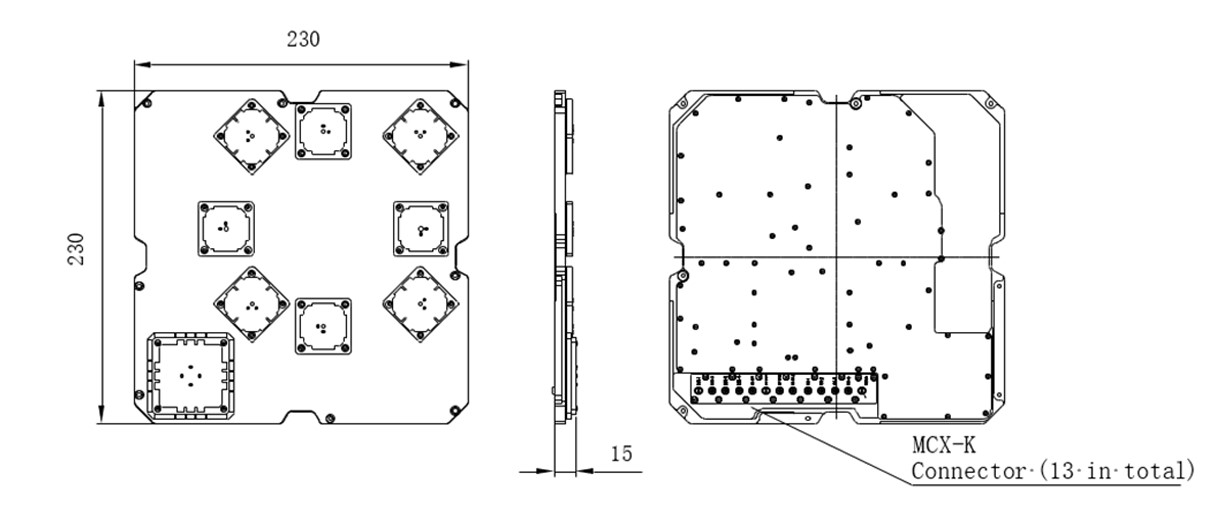

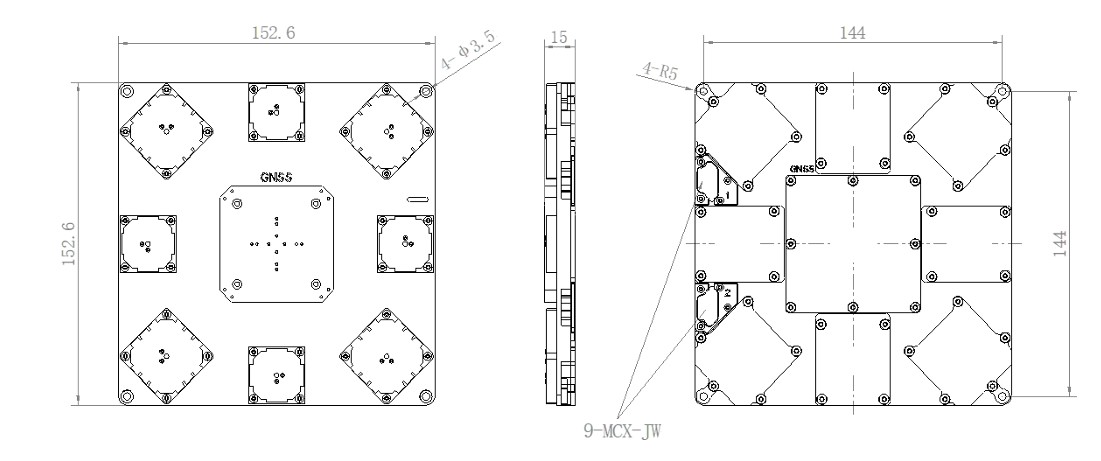

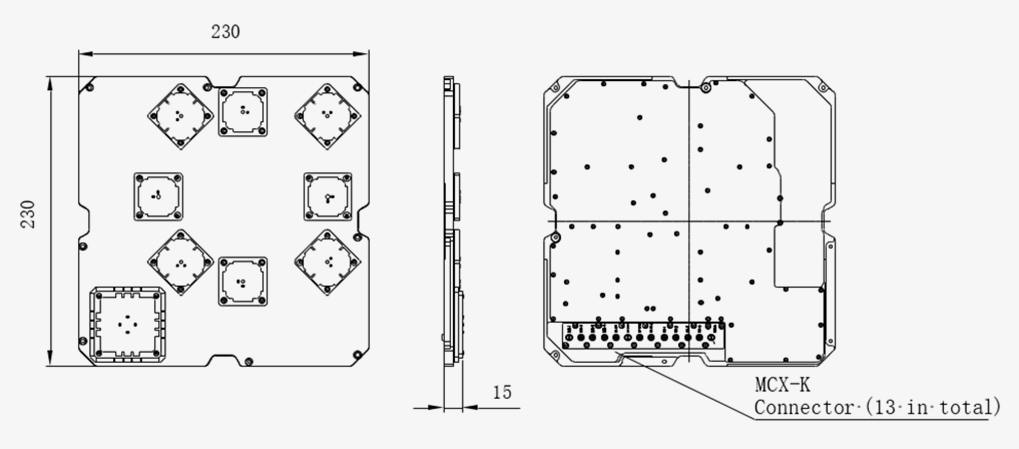

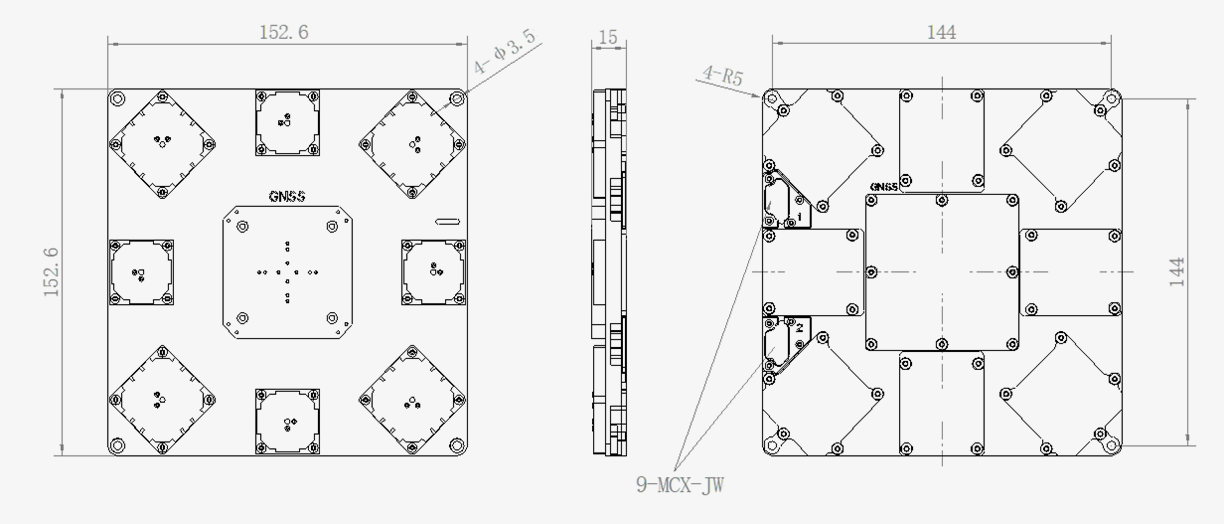

< image 2> DRAWING & DIMENSIONS
WARRANTY
The period of warranty shall start from the date of purchase of the product and shall cover a period one (1) year. If the date of purchase of the product is unknown, the period of warranty shall start from the month of manufacturing of the product.

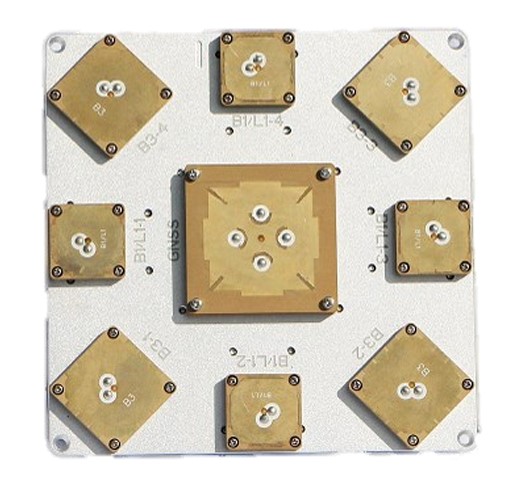

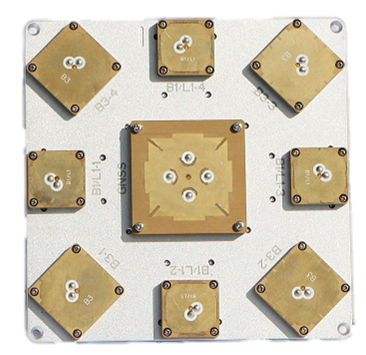

FDA5009B
Satellite navigation systems are currently being used as useful systems that provide location and time information to civilians and the military, but they have the characteristic of being vulnerable to jamming attacks due to the low sensitivity of long-distance satellite signals. The FDA5009B series is a nine elements anti-jamming antenna that covers the GPS L1/L2 and GLONASS L1 bands. It is particularly suitable for military applications as it can be applied to environments vulnerable to jamming. The FDA5009B series consists of eight ant-jam antennas, one high precision GNSS antennas. The high precision antenna has four feed structure to improve accuracy and stability.
- Consists of eight anti-jamming antennas and one high precision GNSS antenna
- Including LNA with pre-filter and multi stage filter
- Frequency band: GPS L1/L2, GLONASS L1
- High-precision GNSS antenna with anti-jamming array
- Four feed design for high precision GNSS antenna
- Built-in lightning protection circuit
| ELECTRICAL SPECIFICATIONS | GPS L2 | GPS L1/GLONASS L1 | High precision GNSS |
|---|---|---|---|
| Frequency range | 1217~1237MHz | 1574~1577MHz | 1217~1237MHz |
| 1598~1608MHz | 1574~1577MHz | ||
| Gain | ≥ 2.0dBi (elevation angle 90°) | ≥ 3.0dBi (elevation angle 90°) | L2: ≥ 3.0dBi (elevation angle 90°) |
| L1: ≥ 2.0dBi (elevation angle 90°) | |||
| Polarization | RHCP | RHCP | RHCP |
| VSWR | < 2.0 | < 2.0 | < 2.0 |
| Circular polarization axial ratio | ≤ 3dB (elevation angle 90°) | ≤ 3dB (elevation angle 90°) | ≤ 3dB (elevation angle 90°) |
| Pattern shape | |||
| LNA Gain | 20±1dB | 20±1dB | 35±2dB |
| VSWR | < 2.0 | < 2.0 | < 2.0 |
| Noise figure | ≤ 1.8dB | ≤ 1.8dB | ≤ 2.0dB |
| Output3rd order intercept point | ≥ 33dBm | ≥ 30dBm | |
| Out band rejection | |||
| Input voltage | 4.5~12V | ||
| Current consumption | ≤ 90mA | ||
| Operating temperature | -40°C ~ +70°C | ||
| Storage temperature | -45°C ~ +85°C | ||
| Description | |
|---|---|
| Connector | 13-MCX-K |
| Dimension | 230 x 230 x 15mm |
| Weight | < 900g |
| Operating temperature | -40°C ~ +70°C |
| Storage temperature | -45°C ~ +85°C |
- Note
- The maximum ratings are stress only, and functional operation at the maximum is not guaranteed. Stress beyond the limits specified in the table may affect device reliability or cause permanent damage the device.
< image 1> MULTI JAMMING TEST BLOCK DIAGRAM
< image 2> DRAWING & DIMENSIONS
WARRANTY
The period of warranty shall start from the date of purchase of the product and shall cover a period one (1) year. If the date of purchase of the product is unknown, the period of warranty shall start from the month of manufacturing of the product.
FDA5014

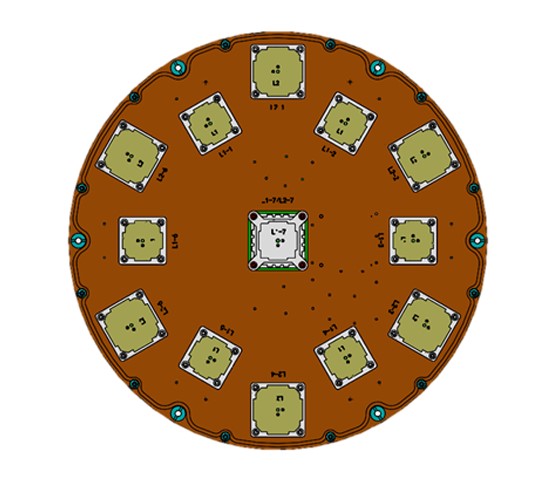

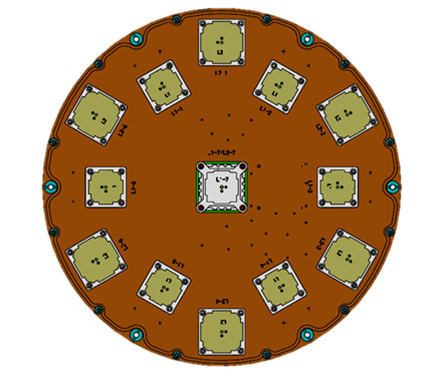

Satellite navigation systems are currently being used as useful systems that provide location and time information to civilians and the military, but they have the characteristic of being vulnerable to jamming attacks due to the low sensitivity of long-distance satellite signals. The FDA5014 series is a twelve elements anti-jamming antenna that covers the GPS L1/L2 bands. It is particularly suitable for military applications as it can be applied to environments vulnerable to jamming. The FDA5014 series consists of twelve ant-jam antennas and two GNSS antennas.
- Consists of twelve anti-jamming antennas and two GNSS antenna
- Including LNA
- Frequency band: GPS L1/L2
- Symmetric layout design to ensure unit performance consistency
- High gain, low noise, wide beam and good signal reception at low elevation angle
| ELECTRICAL SPECIFICATIONS | GPS L2 | GPS L1 | GNSS |
|---|---|---|---|
| Frequency range | 1227.60±10.23MHz | 1575.42±1.023MHz | 1227.60±10.23MHz |
| 1575.42±1.023MHz | |||
| Gain | ≥ 3.0dBi (elevation angle 90°) | ≥ 3.0dBi (elevation angle 90°) | ≥ 3.0dBi (elevation angle 90°) |
| Polarization | RHCP | RHCP | RHCP |
| VSWR | < 2.0 | < 2.0 | < 2.0 |
| Circular polarization axial ratio | ≤ 3dB (elevation angle 90°) | ≤ 3dB (elevation angle 90°) | L2: ≤ 3dB (elevation angle 90°) |
| L1: ≤ 1.5dB (elevation angle 90°) | |||
| Isolation | |||
| LNA Gain | 21±1dB | 21±1dB | 35±2dB |
| VSWR, input/output | < 1.5/2.0 | < 1.5/2.0 | < 2.0 |
| Noise figure | ≤ 2.0dB | ≤ 2.0dB | ≤ 2.0dB |
| Output3rd order intercept point | ≥ 20dBm | ≥ 20dBm | |
| Out band rejection | ≥ 50dBc @ fc±90MHz | ≥ 50dBc @ fc±90MHz | |
| Input voltage | 4.5~5.0V | ||
| Current consumption | ≤ 80mA | ||
| Operating temperature | -40°C ~ +70°C | ||
| Storage temperature | -45°C ~ +85°C | ||
| Description | |
|---|---|
| Connector | JY27496/J599, TNC-K, TNC-K |
| Dimension | Φ309 x 43.6mm |
| Weight | < 4kg |
| Operating temperature | -40°C ~ +70°C |
| Storage temperature | -45°C ~ +85°C |
- Note
- The maximum ratings are stress only, and functional operation at the maximum is not guaranteed. Stress beyond the limits specified in the table may affect device reliability or cause permanent damage the device.
< image 1> MULTI JAMMING TEST BLOCK DIAGRAM

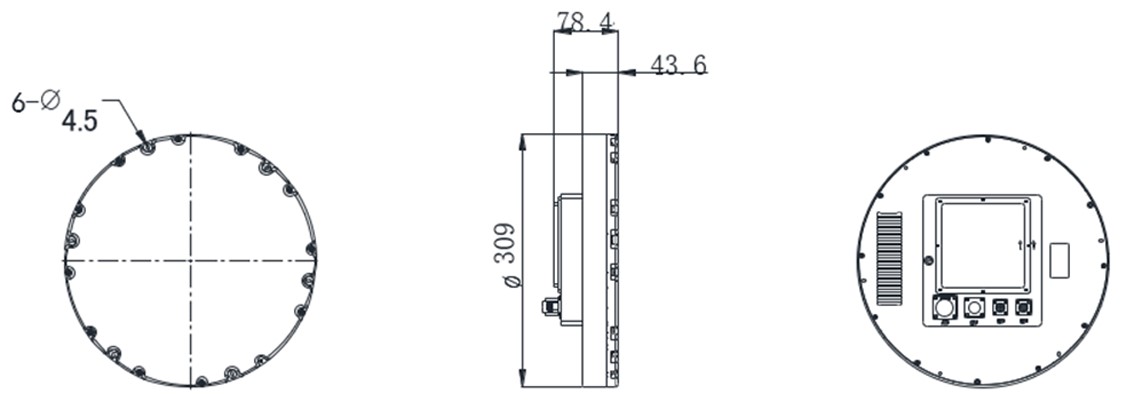

< image 2> DRAWING & DIMENSIONS
WARRANTY
The period of warranty shall start from the date of purchase of the product and shall cover a period one (1) year. If the date of purchase of the product is unknown, the period of warranty shall start from the month of manufacturing of the product.
